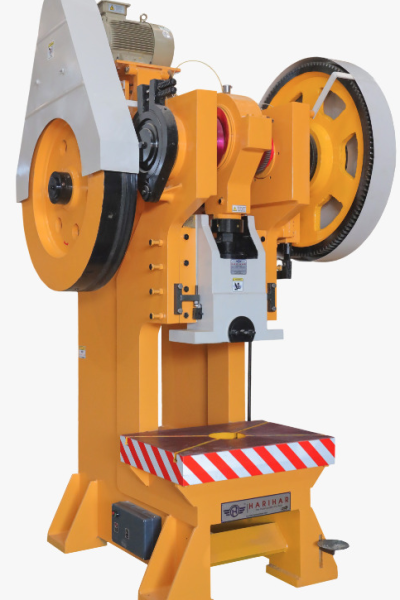

C Type Mechanical Power Press Machine

C Type Mechanical Power Press Machines are widely used in various industries for efficient metal forming, punching, cutting, and shaping operations. These machines are designed with a strong “C” frame structure that provides excellent accessibility to the working area and ensures smooth and accurate performance during production.

At Harihar Machines Pvt. Ltd., we manufacture high-quality C Type Mechanical Power Press Machines using advanced technology and premium-grade materials. Our machines are engineered to deliver high precision, durability, and reliable performance for different industrial applications.

These machines are highly appreciated for their robust construction, high operational efficiency, low maintenance requirements, and long service life. The compact design and easy operation make them ideal for small, medium, and large-scale manufacturing units.

C Type Power Press machines are commonly used in industries such as automobile manufacturing, sheet metal processing, engineering workshops, fabrication units, and metal component production. With a focus on quality and performance, our machines ensure maximum productivity and consistent results for industrial operations.

Standard Equipment

Flywheel & Gear Wheel Guard
Oil Cups
Self-Lubrication System (For 60 Ton & above)
Motor Pulley
Knock Out System (For 10 Ton & above)
Slide Adj. Spanner

Optional Equipment

Pneumatic Double Push Stroke
Auto Lubrication System (Hand & Motorized)
Electrical Motor, Starter & V-Belt
Digital Stroke Counter
Electrical Motor, Starter
Inclinable Type
Anti-vibration Mount
Die Clamping

Specification

Tonnage	Crank Shaft Diameter	Stroke Adjustment	Slide Adjustment	Hole in Ram (Shank Hole)	Hole in Bed	Bed Size (LR x FB) Bolster	Depth of Throat	Distance Bed to Ram (Day Light)	Shut Height (Die High)	Fly Wheel Diameter	Strokes Per Minute (Single Gear)	Strokes Per Minute (Double Gear)	Motor H.P.	Floor to Bed	Length	Width	Height	Weight Kgs. (Approx)
3 Ton	45	10-19	20	19	64	250×150	75	150	105	300	85	—	0.5	570	545	485	1244	150
5 Ton	51	10-38	25	25.4	72	340×200	100	160	120	380	82	—	1	700	600	690	1370	310
10 Ton	60	10-51	25	32	82	400×250	125	200	150	460	78	50	1.5	732	900	915	1800	575
20 Ton	76	10-75	32	38	95	510×300	150	300	225	610	65	45	3	800	1000	950	2080	1050
30 Ton	83	10-75	38	38	100	560×380	190	360	280	650	55	45	5	800	1000	950	2190	1480
40 Ton	83	10-75	38	38	100	610×380	190	360	280	650	55	45	5	825	1100	950	2250	1650
50 Ton	100	12-100	40	51	152	660×400	200	400	300	710	55	38	7.5	825	1250	1120	2460	2500
80 Ton	112	12-112	50	51	175	760×500	275	480	355	850	45	35	15	825	1400	1524	3000	3800
100 Ton	130	12-125	50	51	200	810×550	300	480	355	950	35	35	15	825	1520	1650	3050	5300
150 Ton	140	12-125	50	51	200	860×610	315	550	385	1000	35	—	18	825	1850	2200	3300	6500
200 Ton	160	12-150	60	63	225	1000×700	350	550	385	1150	35	—	20	825	2340	2200	3500	9200
