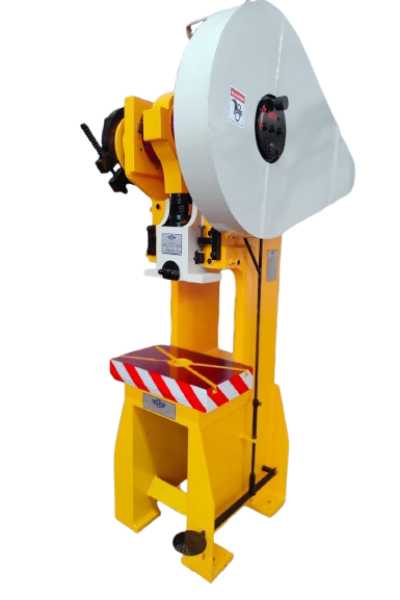

C Type UN Gear Power Press

C Type UN Gear Power Press Machines are specially designed for heavy-duty metal forming operations where high strength, durability, and reliable performance are required. These machines are built with a strong C-frame structure and equipped with an un-geared (direct drive) mechanism, which ensures smooth operation, higher efficiency, and better control during production processes.

At Harihar Machines Pvt. Ltd., we manufacture premium quality C Type UN Gear Power Press Machines using advanced manufacturing technology and high-grade materials. These machines are engineered to provide accurate performance, long operational life, and stable operation even under continuous industrial workloads.

The un-geared design allows the machine to operate with reduced mechanical complexity, improved efficiency, and lower maintenance requirements compared to conventional geared presses. This makes the machine highly suitable for industries that require consistent production and reliable performance.

Our C Type UN Gear Power Press Machines are widely used in sheet metal industries, automobile manufacturing, engineering workshops, fabrication units, and metal component production for operations such as punching, blanking, bending, and forming.

Specification

Tonnage	Crank Shaft Dia.	Stroke Adj.	Slide Adj.	Hole in Ram (Shank)	Hole in Bed	Bed Size (LR x FB)	Bolster	Depth of Throat	Distance Bed to Ram	Shut Height	Flywheel Dia.	SPM (S. Gear)	SPM (D. Gear)	Motor H.P.	Floor to Bed	Length	Width	Height	Weight (Kgs)
3 Ton	45	10-19	20	19	64	250x150	75	150	105	300	85	--	--	0.5	570	545	485	1244	150
5 Ton	51	10-38	25	25.4	72	340x200	100	160	120	380	82	--	--	1	700	600	690	1370	310
10 Ton	60	10-51	25	32	82	400x250	125	200	150	460	78	50	--	1.5	732	900	915	1800	575
20 Ton	76	10-75	32	38	95	510x300	150	300	225	610	65	45	3	3	800	1000	950	2080	1050
30 Ton	83	10-75	38	38	100	560x380	190	360	280	650	55	45	5	5	800	1000	950	2190	1480
40 Ton	83	10-75	38	38	100	610x380	190	360	280	650	55	45	5	5	825	1100	950	2250	1650
50 Ton	100	12-100	40	51	115	660x400	200	400	300	710	55	38	7.5	7.5	825	1250	1120	2460	2500
80 Ton	112	12-112	50	51	175	760x500	275	480	355	850	45	35	15	15	825	1400	1524	3000	3800
100 Ton	130	12-125	50	51	200	810x550	300	480	355	950	35	35	15	15	825	1520	1650	3050	5300
150 Ton	140	12-125	50	51	200	860x610	315	550	385	1000	35	--	18	18	825	1850	2200	3300	6500
200 Ton	160	12-150	60	63	225	1000x700	350	550	385	1150	35	--	20	20	825	2340	2200	3500	9200
